Model Types
- Relational
- nonrelational
- Document Based: use cases where data comes in self-contained documents and relationships between one document and another are rare
- Graph-like Data Models: use cases where anything is potentially related to everything
Historical Models
- Hierarchical model - represented all data as a tree of records nested within records
- Worked well for one-to-many relationships but not many-to-many relations
- Network model - generalization of hierarchical model, the difference is that a record could have multiple parents rather than one.
- Links were like pointers, not like foreign keys which are absolute references. Accessing a record required following a path from root (access path)
Relational Model
Motivations
- Used for business data processing: typically transaction processing and batch processing
- Goal, hide implementation detail behind a cleaner interface
- SQL is declarative language that hides the application developer from having to rewrite their query for optimizations or to use indexes
- Only need to build query optimizer once, optimizations can be generalized to multiple applications
- No Nested structures, just tables which are a collection of tuples
Traits
- schema-on-write - schema is explicit and all written data conforms to the schema
Pros
- Transactional guarantees
Cons
- impedence mismatch - when application models don’t match with database models
- ORMs attempt to reduce the boilerplate code for translating models, but can’t completely hide the differences
NoSQL
Motivations
- Greater scalability than relational database, eg. for write throughput
- A widespread preference for free and open source software
- Specialized query operations that are not well supported by the relational model
- Frustration with the restrictiveness of relational schemas and a desire for a more dynamic and expressive data model
Traits
- schema-on-read - structure of data is implicit, and only interpreted when the data is read
Pros
- Lack of schema - provides more schema flexibility
- Locality - data that is typically grouped together are grouped in documents, this reduced the amount of database fetches
Cons
- Lack of schema - causes impedence mismatch, but as shown before it can also be more useful
Relational vs Document DBs for Data Modeling
| Document DB | Relational |
|---|---|
| schema flexibility | better joins support |
| better performance due to locality | better many-to-one and many-to-many support |
| better for document-like structures (tree of one-to-many relationships) |
Application Design
When choosing which database to use, the best choice of technology may differ from another use case. The idea of polygot persistenceis utilizing multiple different types of databases for different types of data.
Example use cases of various databases from Martin Fowler:
Data Modeling Design
Key factors to consider
- Locality of data
- Self contained data (eg. resume) may be more appropriate for JSON representation and document-oriented databases
- Reduces the amount of queries to the database compared to relational databases with joins
- Avoid plain-text strings as identifiers
- Localization support
- Better search, ties to metadata
- Avoids ambiguity, duplication
- Normalization - removing duplicate data within the database
- Although not a hard fast rule. Duplication can help with optimizing performance through locality
- For document databases, support for joins is weak and may require emulating a join by making multiple queries to the database.
- In this case, the other documents should be small and changing enough that the application can simply keep them in memory to shift the join from database to application code.
Query Languages for Data
Types
- Declarative - specify the pattern, the computer then decides how to handle the pattern
- Parallelization under query optimizer, more flexibility
- Imperative - tells the computer to perform certain operations in order

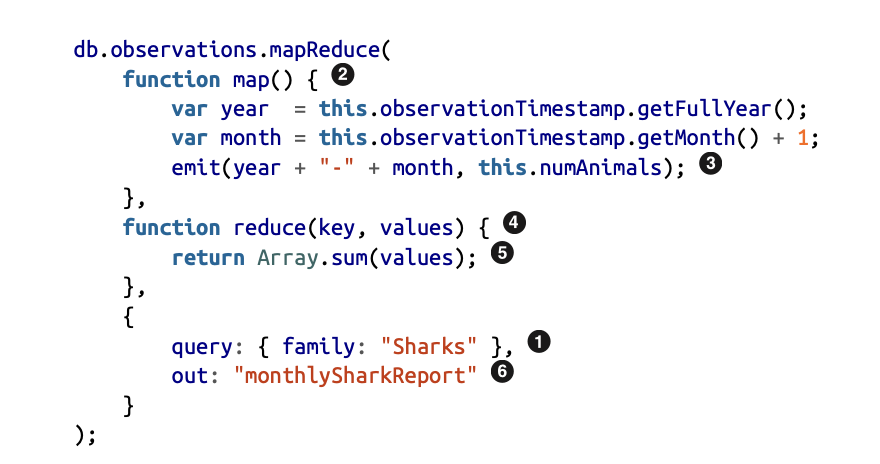

MapReduce Querying
MapReduce is a programming model for processing large amounts of data in bulk across many machines
- MapReduce is neither a declarative language nor a fully imperative query API
- Ex. Shark filter is written declaratively. Map and reduce written imperatively.
Graph-Like Data Models
A graph consists of two kinds of objects: vertices (nodes or entities) and edges (relationships or arcs)
- Example data that can be modeled as graphs:
- Social Graphs
- The web graph
- Road or rail networks
When to use graph DBs?
When many-to-many relationships are very common. Where anything is potentially related to everything
Property Graphs
Directed edge graph
<TODO>
Cypher Query Language
Declarative query language that uses vertex and edge relationships to query data
<TODO>
Triple-Stores
Mostly equivalent to the property graph model, but using different words to describe the same ideas.
All information is stored in the form of a three-part statement: (subject, predicate, object).
- Eg. (Jim, likes, bananas)
- Represents a relationship between two nodes in a graph

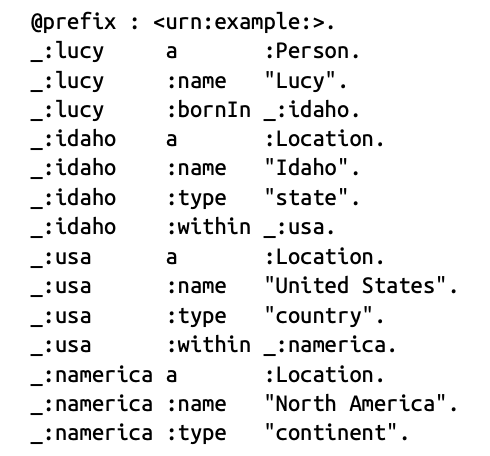

Turtle triples - a human readable representation of triples
<TODO>

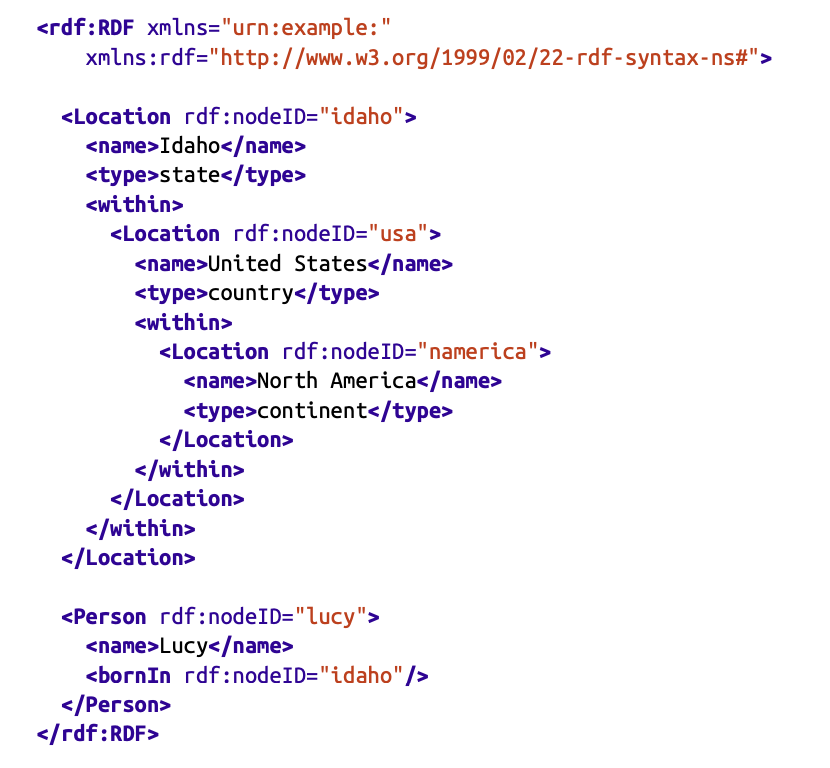

RDF data model
RDF made for the web. XML-like.

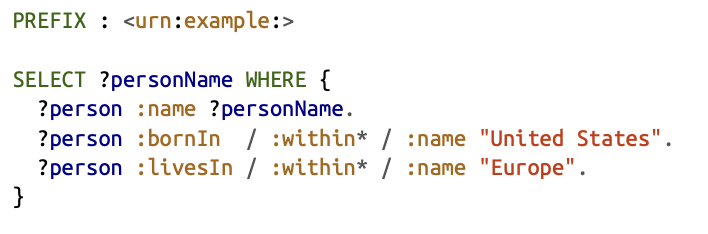

SPARQL
Query language for triple-stores using the RDF data model
Background: DataLog
<TODO>
