Lecture 18 - Power and Security

Power-Aware Architecture

Background

• CMOS circuits were designed to only dissipate power when they switch values.
• That’s no longer completely true, but dynamic (switching) power still dominates static (leakage) power

DVFS, clock gating and power gating

Security

Prime and probe

• side channel attack, check when mem user access
• assume shared cache, but no shared memory
• works by observing conflicts in particular set (or sets) of cache
  • fill a set with data
  • user access mem, kicks out set
  • count cycles to read blocks set
    • if same, all blocks still in set
    • else a miss due to user block eviction

Flush and Reload

• Assume you have access to some read-shared memory

1. Attacker flushes A from cache
2. Victim conditionally reads A
3. Attacker reads A, speed determines hit or miss in shared cache, and thus reveals condition.

Defenses

• Flush all the cache
• Partition the cache
• No real solution that has minimal defenses

Transient Execution Attacks

Speculation or transient attacks

• Meltdown and Spectre
• Basic problems:
  • If you can influence control flow of another domain (eg kernel), you have control of what data is touched
  • Speculative execution is not subject to usual memory protections

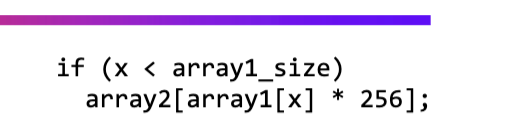

Spectre v1

•
• If x is large enough, can execute any part in memory

<TODO> what is constant time programming?

• fix:
  • put a fence before a potentially vurnable load in kernel

Spectre v2

• BTB track past jump destinations
• Processor predicts based on BTB and executes speculatively
• More freedom for the attacker - billions of possible destinations

Meltdown

• read speculative data illegally
• more a bug, Spectre downfall of speculation

<virtual caches tradeoffs>
