Lecture 17 - Multiprocessing

Uniprocessor

What does a uniprocessor lacks:

• Complexity
• Power
• Lack of ILP
  • lots of it was due to superscalar parallelism which was harder and harder to find in programs
• Marginal gains of incremental logic

Big Idea

• Marginal utility of each new transistor is decreasing
• If n is the number of transistors
  • Performance is O(sqrt(N))
  • Power and Area are O(N)
  • Diminishing returns

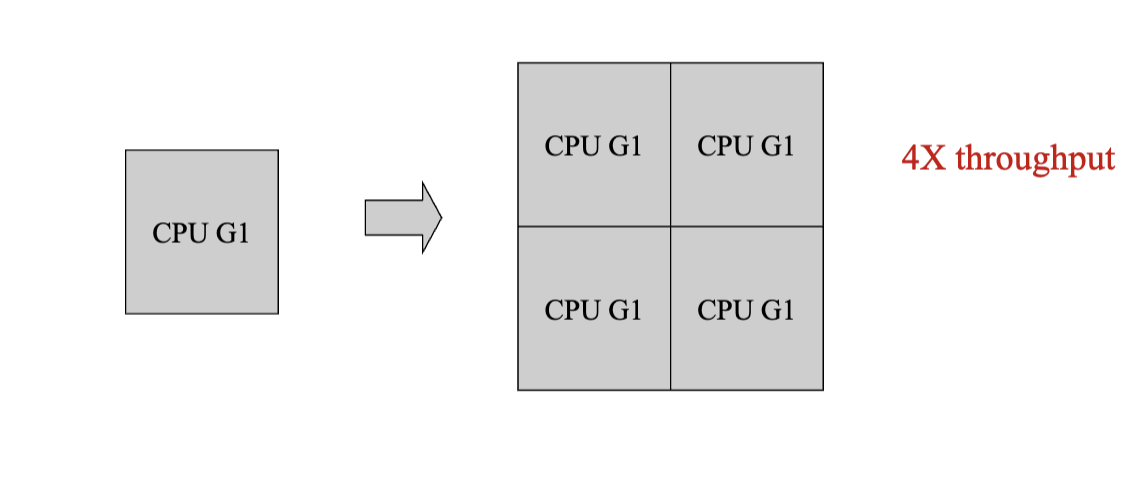

Throughput Computing

• Tradeoff: smaller 4x smaller CPUs rather than 1 super big CPU
  • Slower single thread, 4x throughput

Parallel Architectures

• Multiprocessor
• Multithreaded processors
• Multicore processors

Classifying Multiprocessors

Flynn Taxonomy

• SISD (Single instruction Single Data)
  • Uniprocessors
• SIMD (Single Instruction Multiple Data)
  • GPUs
• MIMD (Multiple Instruction Multiple Data)
  • modern multiprocessors or multicores
• MISD (Multiple Instruction Single Data)
  • Not possible

Interconnection Network

Two types:

• Bus
• Network Based

Memory Topology

• UMA (Uniform Memory Access)
  • Same speeds for all memory accesses
• NUMA (Non-uniform Memory Access)
  • Latency is dependent on address locality
  • Network based are often NUMA, a piece of memory is local to each process (Fast), addressing non-local (slow)

Programming Model

• Shared Memory - every processor can name every address location
• Message Passing - each processor can name only it’s local memory. Communication is through explicit messages (multicomputer)

note: roughly two

• programming models: shared memory vs message passing
• hardware approaches: shared memory vs messing passing
• These decisions are somewhat orthogonal (TODO WHY?)

Parallel Programming

• Shared-memory programming requires synchronization to provide mutual exclusion and prevent race conditions

Multiprocessor Caches (Shared Memory)

Cache Coherency Problem

• Solve with Cache Coherent Protocol
• Informally:
  • Any read must return the most recent write
  • Too strict and very difficult to implement
• Better:
  • A processor sees its own writes to a location in the correct order
  • Any write must eventually be seen by a read
  • All writes are seen in order (“serialization”). Writes to the same location are seen in the same order by all processors.

Solution

• Track the state of every cache line
  • Invalid, Valid, Modified, Clean
• Bus easy, order determined by arrival in bus
• Snooping Solution (Snoopy Bus)
  • Send all requests for unknown data to all processor
• <TODO>

<TODO below> - what is this hoare vs mesa semantics lmao?

• Write-update
  • On each write, each cache holding that location updates its value
• Write-invalidate
  • On each, write, each cache holding the location invalidates the cache line

MESI Protocol, a Snoopy protocol

• Invalidation protocol, assumes write-back cache
• <TODO>

MOESI = Modified, Owned, Exclusive, Shared, Invalid

• Added OWNED (dirty in multiple caches, owned in one) ⇒ Owner responsible for writing back shared, dirty line
  • dirty means diff from main memory, but in coherency case, has to be consistent with other caches

Multiprocesssor Summary

• Network vs Bus
• Message-passing vs Shared Memory
• Multiprocessing+caches = coherence problems
  • Cache coherence protocols solve the coherence problem in
  hardware
  • Multicore+multithreading gives high performance across a
  range of TLP.
